KIBES - Electric Control Units
We offer a wide portfolio of different Electric Control Units.

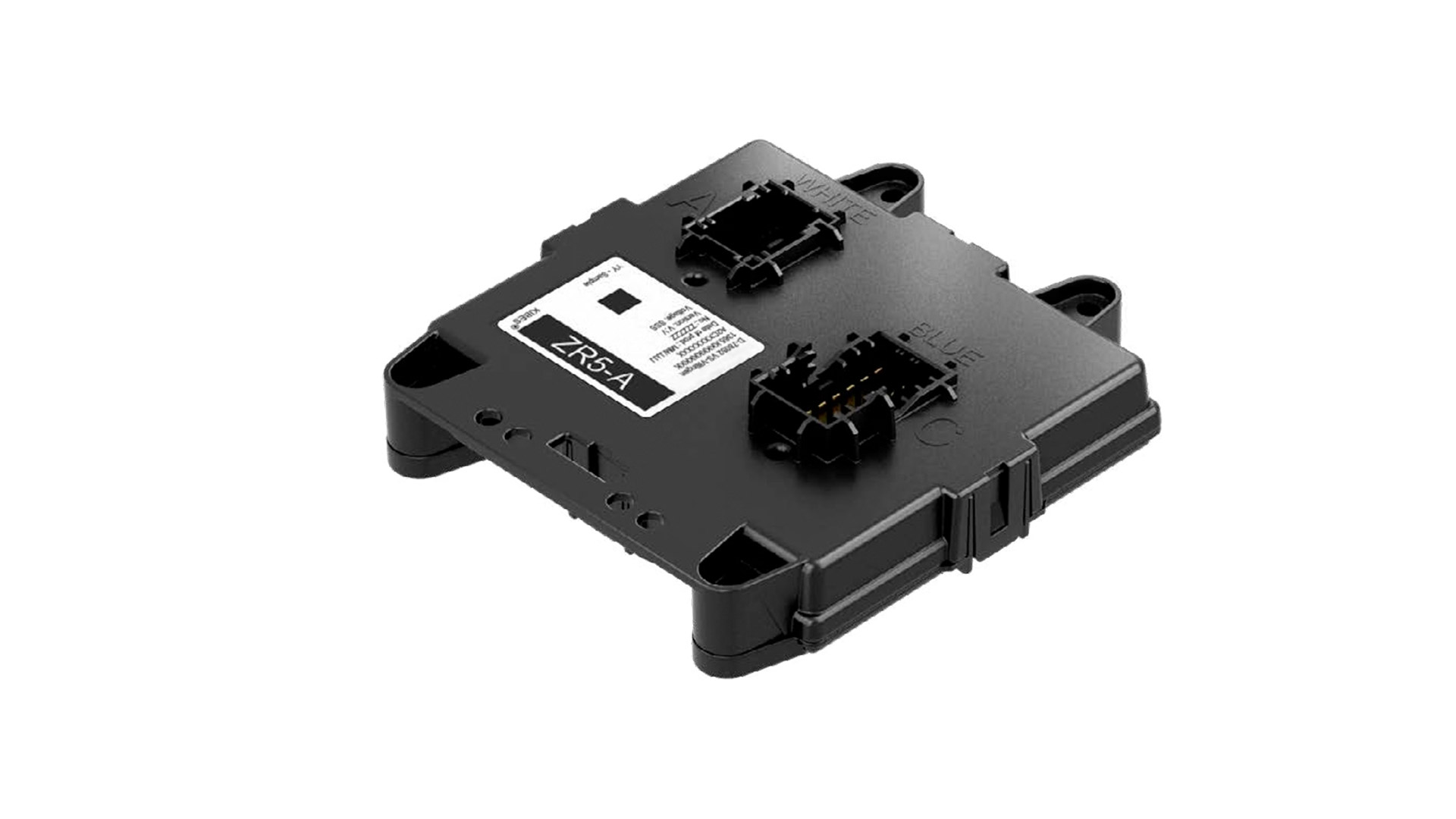

New Generation KIBES 5 - Central Computer ZR5
- Generic central computer for general purpose (bus/coaches/etc.)
- I/O and complex gateway functionality
- Central gateway for EOL programming & diagnosis
- Application programming via PLC tool logiCAD (IEC 61131-3)
- Supports applications up to ASIL B
Key Features
- New processor platform
› PLC performance up to 10 x ZR32-A PLC
› Memory for PLC application up to 4 x ZR32-A PLC application - 7 CAN interfaces, parametric
- 1 CAN for diagnostic (D-CAN)
- CAN gateway individual programmable
- Supports the new MUX5-B
- Diagnosis & EOL programming via UDS on CAN
- 2 low side outputs + 7 LS outputs (programmable as
inputs) - 4 digital inputs, parametric
- 4 wake-up inputs
- 2 frequency inputs (speed, RPM)
- 2 LIN interface
- Prepared for Ethernet (100BaseT1)
- Prepared for FD CAN
- Support for safety critical functions (up to ASIL B)
- Protection level IP40
New Generation KIBES 5 - Multiplex Node MUX5-B
- Generic multiplex node for general purpose (bus/coaches/etc.)
- Built in diagnostic & protection capabilities
- Multiple input & output capabilities
- Supports applications up to ASIL B
Key Features:
- 1 CAN interface (proprietary to ZR5)
- 24 high side outputs (2x9A, 4x5A, 6x3A, 8x1A, 4x0,3A)
- 8 low side outputs (8x1A)
- 4 half bridge outputs (4x3A, reverse protected)
› Outputs alternatively used as high side or low side outputs. - Support PWM feature (8 x high side outputs,
4 x low side outputs) - 20 digital inputs, parametric
- 10 analogue or digital inputs, parametric (12 Bit)
- Support of LED diagnostic
- Support current sense diagnostic
- 4-20mA current loop inputs (2x)
- 2 Sensor supply outputs (20mA)
- Support for safety critical functions (up to ASIL B)
- Protection level IP40
Central Body Control Unit - CBCU3
- Electronic and software platform KIBES-32 (24V)
- Model based application using PLC according to IEC 61131-3
- Electronic controlled power output with full diagnostic features
- Collector of digital and analog input signals
- Enhanced network functionality using platform Multiplexing Nodes (MUX4-P)
Key Features
- 2 CAN interfaces 250 Kbps, ISO 11898
- 1 MCAN interface to drive up to 4 MUX4-P nodes
- Interface for Menu Control Unit MCU
- LIN interface optional
- 32 high side outputs (1x7.5A, 3x5.6A, 3x3.6A, 6x2.7A, 10x1.8A, 5x1A, 4x0,2A)
- 2 low side outputs (1A)
- 50 digital Inputs (5 of them with wake-up)
- 6 analog inputs parametric
- 2 frequency inputs
- 6 power supply groups
- Protection IP30
Multiplex Node - MUX4-P
- Generic multiplex node for general purpose (bus/coaches/etc.)
- Built in diagnostic & protection capabilities
- Multiple input & output capabilities
Key Features
- 1 CAN interface (proprietary to CBCU3)
- 22 high side outputs (2x8A, 6x6A, 8x5A, 6x1A)
- 4 half bridge outputs (4x3A, reverse protected)
› Outputs alternatively used as high side or low side outputs - Support PWM feature (6 x high side outputs 6A)
- 8 digital inputs, parametric
- 8 analogue or digital inputs, parametric
- Support of LED diagnostic
- Support current sense diagnostic
- 1 Sensor supply outputs (5V; 40mA)
- Protection level IP6k9
Generic Vehicle Control Unit - gVCU New Generation
- Generic vehicle control unit for multiple vehicles
- I/O and complex gateway functionality
- Dedicated hardware interfaces for different accelerator pedal types
- Application programming via MBDS/Matlab & logiCAD
- Supports applications up to ASIL B
Key Features
- New processor platform with more performance and memory
- 5 CAN interfaces, parametric
- 1 CAN for diagnostic (D-CAN)
- CAN Gateway individual programmable
- Diagnosis & EOL programming via UDS on CAN
- 3 low side outputs (1x 4A, 2x 2A)
- 17 high side outputs (12 PWM capable; 7 ASIL B capable;
4x 2A, 13x 1A) - 20 digital inputs, 6 of them parametric
- 1 wake-up input
- 18 analog inputs; 6 of them configurable
- 2 dedicated interfaces to pedal (PWM, analog)
- 4 Frequency inputs (Speed, RPM)
- 2 LIN interface
- Support for safety critical functions (up to ASIL B)
- Protection level IP40
Generic Vehicle Control Unit - gVCU New Generation IP67
- Identical EE-design, features and SW as existing gVCU NG –
packed in water protected housing for exterior usage - I/O and complex gateway functionality
- Dedicated hardware interfaces for different accelerator pedal types
- Application programming via MBDS/Matlab or PLC(IEC 61131-3)
- Enhanced network functionality using MUX5-B
- Supports applications up to ASIL B
Key Features
- Inputs
› 21 digital inputs (9 High, 5 Low, 6 parametric)
› 16 analog inputs (6 of them configurable)
› 2 dedicated interfaces to pedal (PWM, analog)
› 4 Frequency inputs (Speed, RPM) - Power Outputs
› 13 x 1A High-Side (8 x PWM, 6x ASIL B)
› 4 x 2A High-Side (PWM, 1x ASIL B)
› 2 x 2A Low-Side
› 1 x 4A Low-SIde - 3 x 5V power output/pedal/sensor supply 50mA
- 6 x CAN (5x generic + D-CAN)
› CAN Gateway individual programmable
› Diagnosis & EOL programming via UDS on CAN - 2 x LIN interface
- Protection level IP67
