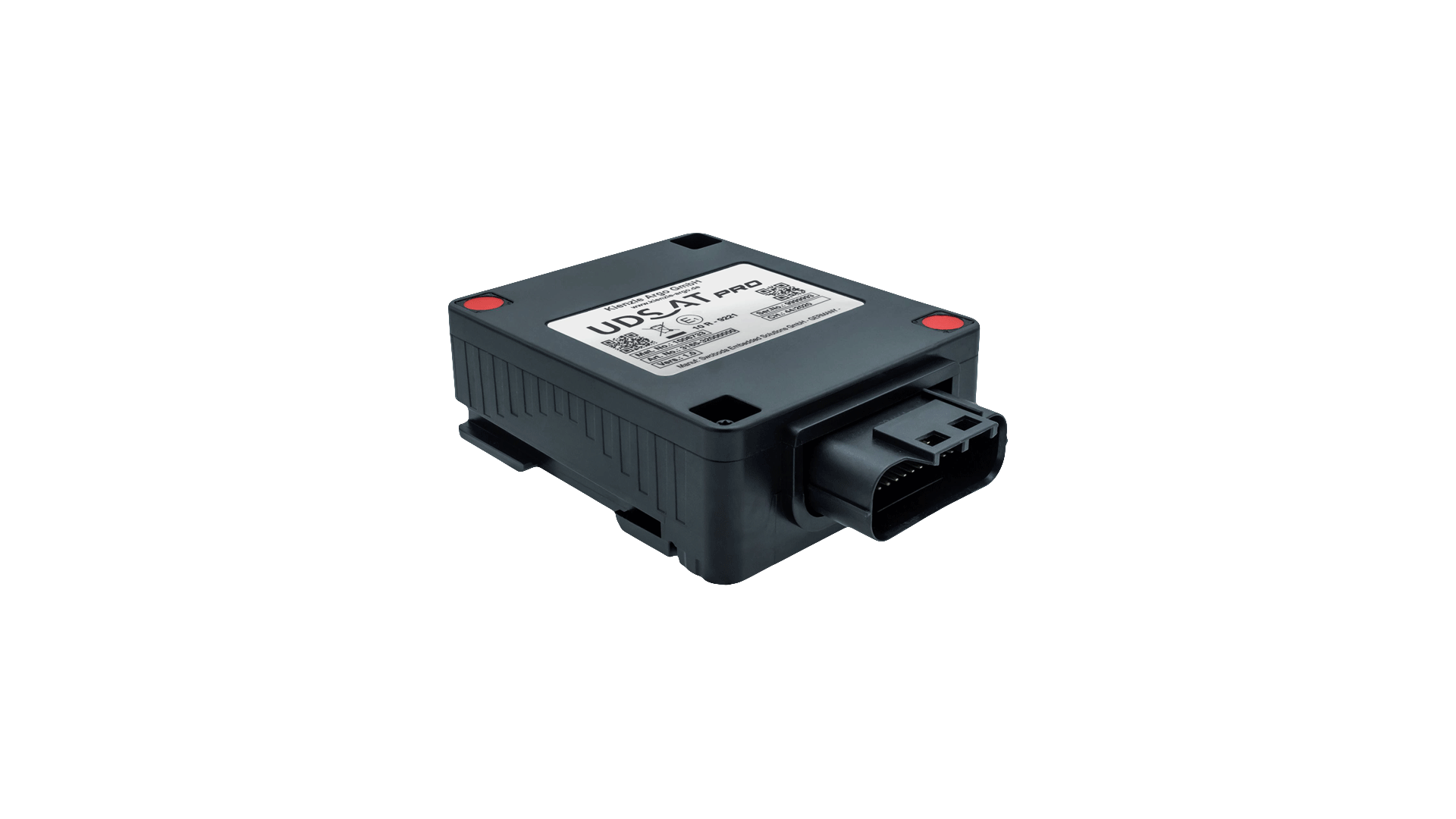

Incident Data Recorders (UDS)

Features:

• High-resolution 3D sensors - The UDS-ATPRO features two independently operating high-resolution 3D sensor systems to detect all movements of the vehicle.
• Unique collision detection - The advanced collision detection algorithm enables the UDS-ATPRO to automatically distinguish between everyday situations, critical driving manoeuvres or an actual collision.
• Intelligent event management - The intelligent event management distinguishes between four event types: triggered automatically, manually, externally or by a vehicle standstill.
  As soon as the system recognises one of these event types, a
  permanent and tamper-proof recording of all event-relevant data takes place automatically.
• Event data recording - In addition to accelerations and angular velocities, the UDS-ATPRO records important vehicle signals such as the use of the brake and the indicators or the status of the blue light and siren.
  In relation to the time of triggering and the event type, the recording is based on time and/or distance. High-resolution data upon occurrence of an event depicts the exact course of an accident.
• Statistics data recording - In addition, the UDS-ATPRO records statistical data on request, which can be used, for example, to consistently document the use of special signals (switch-on and switch-off time).
• GNSS version - The GNSS version of the UDS-ATPRO also supplements all records and statistics with precise satellite-based position data.
