Multi View Display
AUMOVIO provides a wide range of display solutions suitable for various requirements and easy customisation. Logic and human machine interfaces of all our solutions are individually programmable.

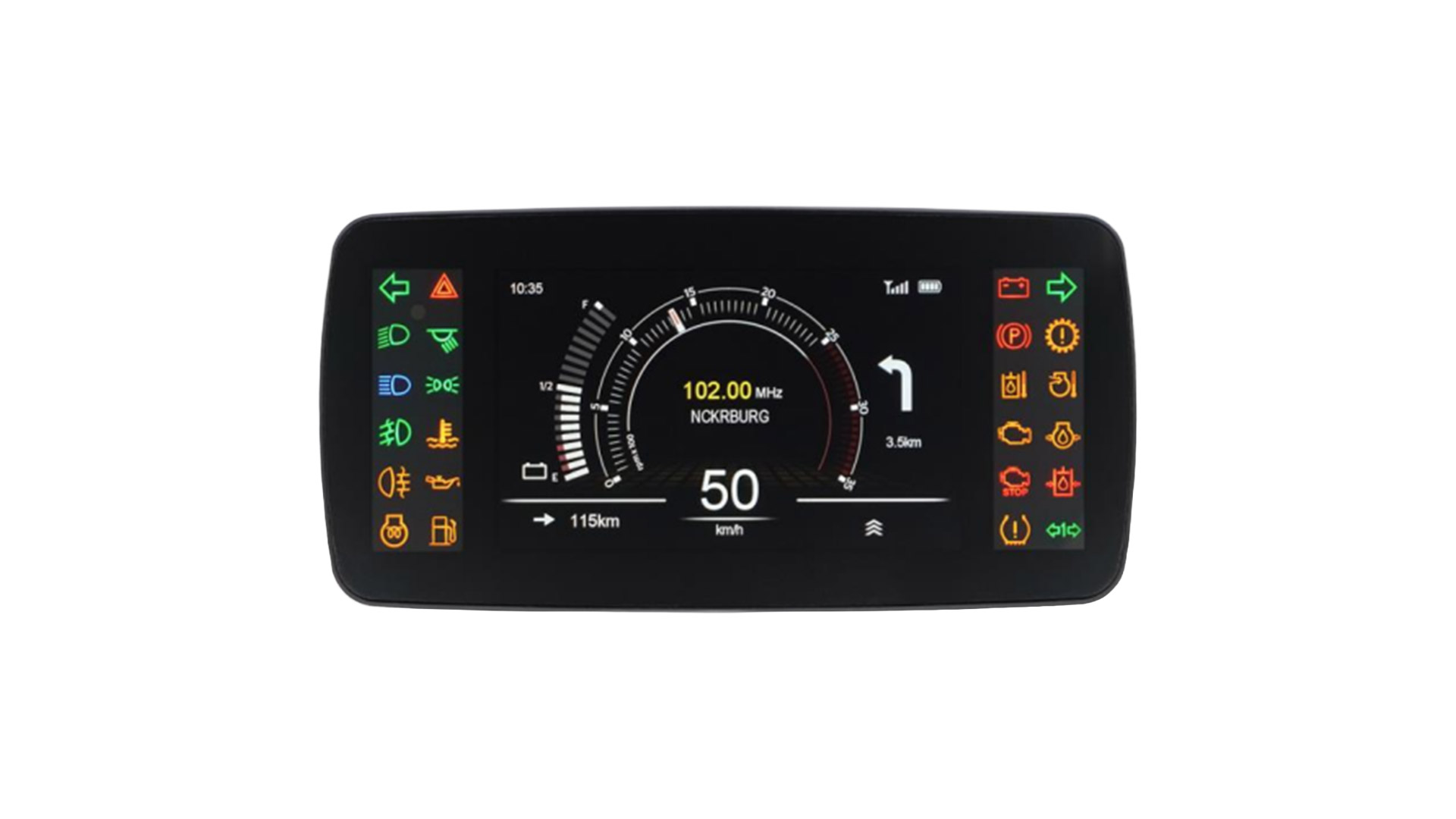

Discover our flexible display solution MultiViu® Compact 7
When installed horizontally, the MultiViu® Compact 7 serves as a compact alternative to the instrument cluster and displays vehicle information such as speed or fuel level. Vertically, it becomes a second device for additional, non-driving-related information and can take over the practical menu navigation.
In the version with touch display, the MultiViu® Compact 7 is reminiscent of modern smartphones – and can be operated intuitively. The manufacturer decides exactly what is shown on the display in both cases using the free programming environment. The 24 illuminated telltales on the side, which provide additional space for information, can also be freely configured. In addition, the cover glass can be customized – including a logo.
The benefits of our MultiViu® Compact 7 displays at a glance
- Platform-independent ready-to-use solution for display units based on TFT display controllers for commercial vehicles
- Compatible with PAL and NTSC cameras
- Modular architecture for easy customization
- 24 backlit display telltales
- Simple model-based application programming with KIBES®
- Bright, legible display even in unfavorable lighting conditions, e.g. strong sunlight
- Scratch-resistant and robust thanks to mineral glass display and optical bonding
- Water- and vibration-resistant
- Blends harmoniously into the interior concept with its black, homogeneous surface
Technical Specifications for our MultiViu® Compact 7
- Display size
7.0 inch transmissive TFT, 16:9 - Pixels
800 x 480 - Luminance
800cd/m² min. - Contrast
1000:1 typ. - Outputs
5 high side (4x50mA, 1x800mA) - 24 Telltales
- 24 Inputs
8 analog inputs
15 digital inputs
1 analog camera input - CAN
2 - Operating voltage
12/24 V (different versions) - Protection class front
IP 65 - Operating temperature
-30°C to +70°C

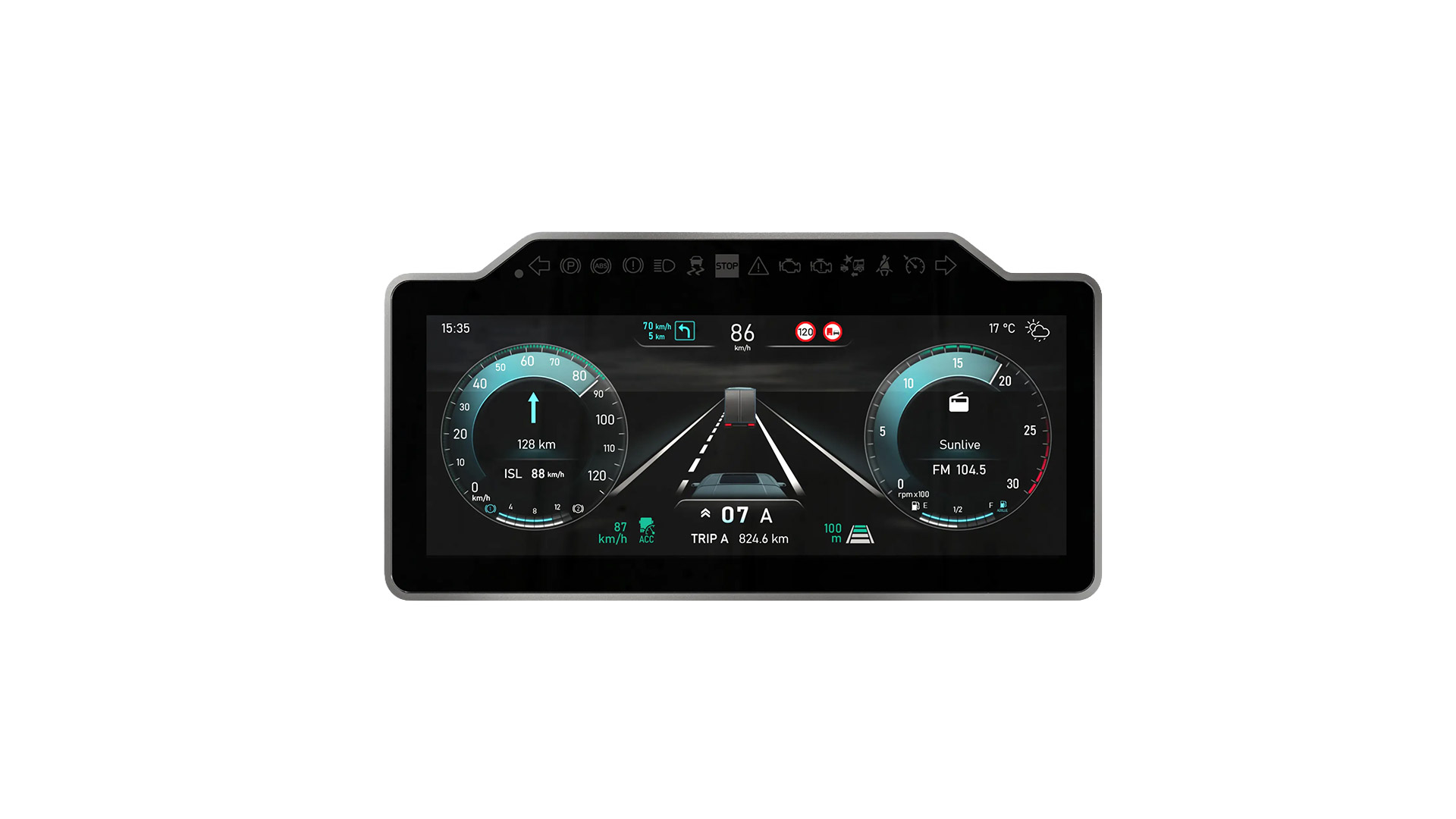

Discover the 2nd Generation premium instrument cluster MultiViu® Professional 12
The MultiViu®Professional 12 in its 2nd generation is AUMOVIO's most innovative standard instrument cluster. It is fully programmable for different needs and requirements and supports the trend towards larger and more colorful displays with its 12.3" TFT color display with optical bonding.
The MultiViu®Professional12 Generation 2 offers maximum freedom in the design of the HMI screen and easy implementation of video and camera images. In addition, the MultiViu®Professional12 Generation 2 can be quickly integrated into the existing vehicle architecture.
The MultiViu®Professional 12 Generation 2 is flexibly programmed using a perfectly coordinated software toolchain with KIBES®-5 PLC and the automotive implementation software CGI Studio with high-end graphics. In addition, it offers a modular structure with a main display module that can be integrated into different front frames to fit seamlessly into the vehicle cabin design.
The benefits of our MultiViu® Professional 12 Generation 2 at a glance
- Flexible, customizable and situation-controlled human-machine interface according to "Simplify your Drive"
- Powerful software that meets the requirements of graphics and needle animation
- Wide range of interfaces for easy integration into the vehicle architecture
- Larger and colorful display presents the increasing flood of driver information and driver assistance functions in a structured way
- Powerful dual µC hardware to flexibly support future MMS requirements
- Time- and cost-optimized development during the project phase by using the Continental software toolchain
- Modular product concept with customizable telltale module and front frame
- Can be integrated into the Driver's Workplace
Technical Specifications for our MultiViu® Professional 12 - 2nd Generation
- Dimensions Classic
414 x 219 x 56 mm - Dimensions Modern
335 x 173 x 54 mm - Display
12.3-inch TFT, 8:3, 1920x720
Mineral front glass, optically bonded with touch - Outputs
19 x Digital Outputs
LIN Power Supply (12V)
Mono Audio Out (1 x internal; 1 x external) - Operating temperature
-30°C to +70°C - Protection class front or back/side
IP 54/IP20 respectively - Interfaces
4 x High Speed CAN
2 x LIN (12V)
1 x Ethernet (DoIP / Video In) - Inputs
67 x Digital Inputs
6 x Configurable Analog Inputs
1 x Ambient Light sensor
3 x Analog Video In
1 x Digital Video In
