Generic Ultrasonic System for flexible integration
The simple solution for meeting modern safety and comfort requirements
Our sensors and ECU are reliable, standard products that enable the simplest implementation of regulations R158 and ISO 17386:2010 via the CAN bus with existing displays and speakers. The software is flexibly configurable and adapts to any application and customer requirement. The system supports up to eight sensors with a measuring range of 20 to 250 cm at 12 V and CAN speeds of 125 to 1000 kbit/s. We are also working on sensor fusion with ProViu®360 and new applications for MultiViu® displays and VDO radios.
More Information
Technical Component Specification
- Wide ECU voltage range of 9 to 16 V – the sensors are powered directly by the ECU.
- Fast communication with CAN baud rates up to 1000 kb/s.

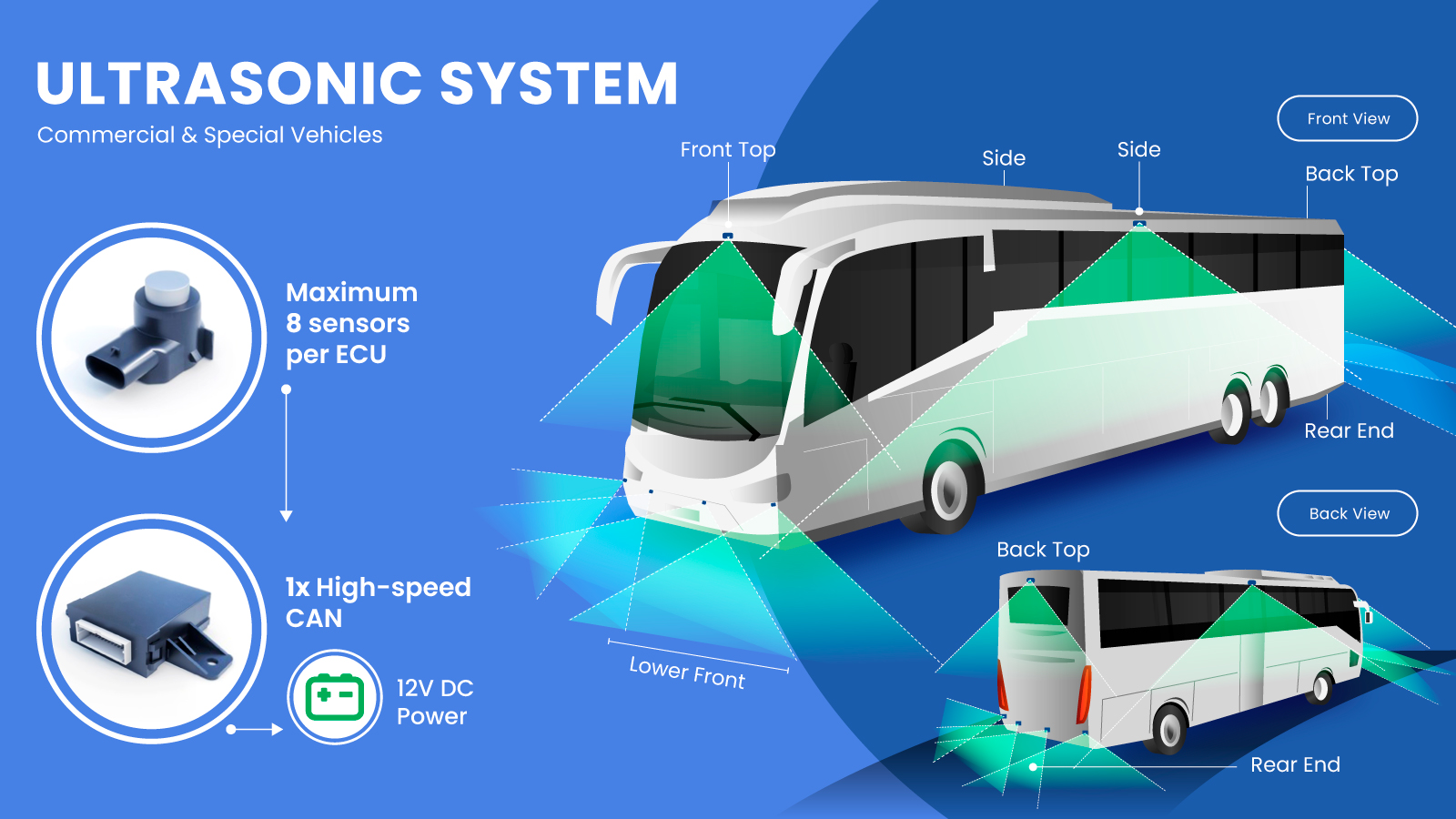

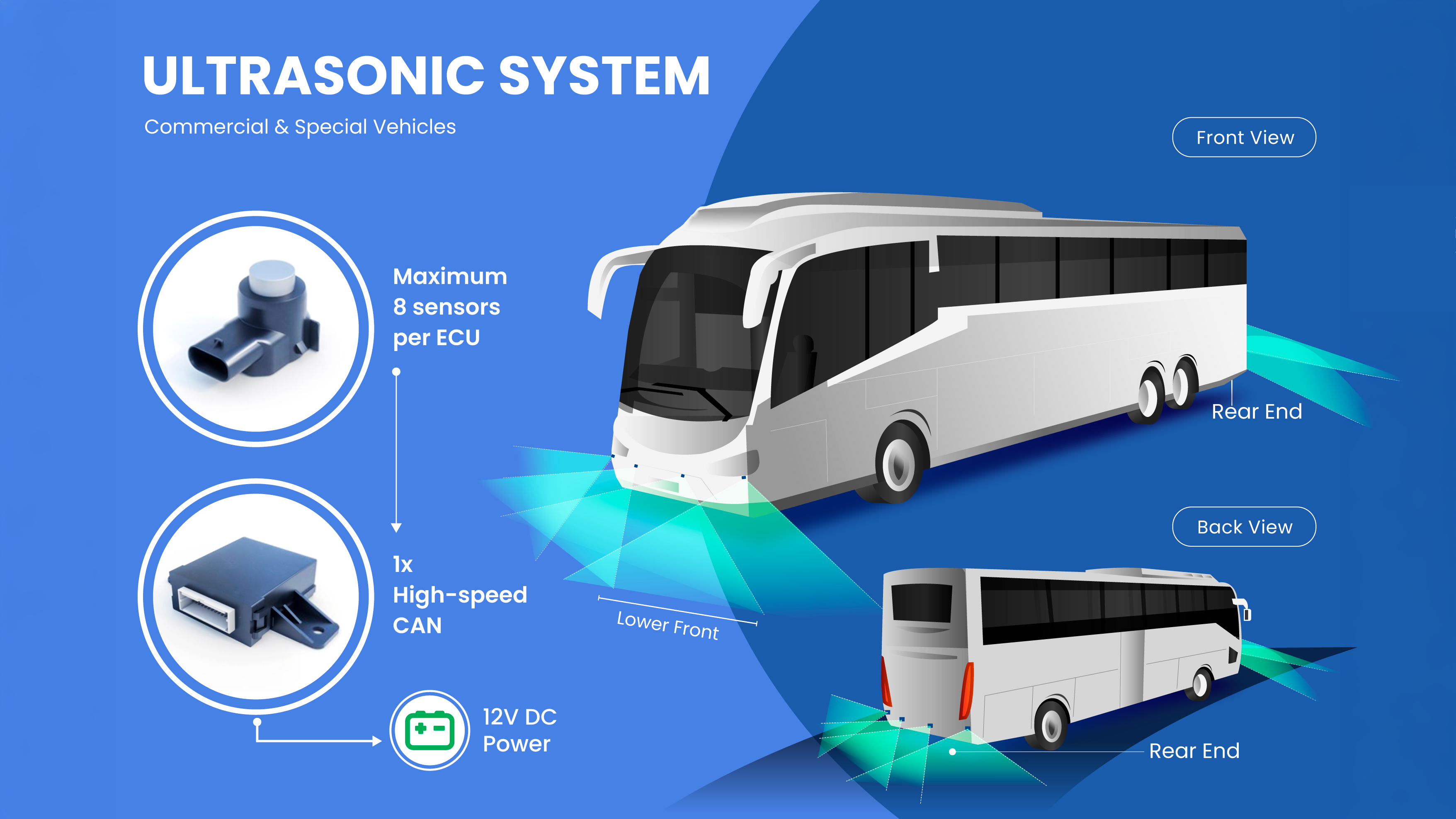

- Supports up to 8 sensors per ECU for versatile applications.
- Reliable operation in extreme temperatures from -40 to +85 °C.
- Robust design with protection classes according to ISO 20653: ECU IP5KX, sensor IP6K9K.
- Precise ultrasonic technology with a 58 kHz sensor frequency.
- Large detection range from 0.2 m to 2.5 m.
- Wide field of view: Horizontal 100° ±10°, vertical 50° ±10°.
Regulation / Certification
- ELV and RoHS compliant, IMDS (worldwide)
- Reach conformation (1907/2006) (worldwide)
- IATF 16949 compliant (worldwide)
- Extensive automotive tests based on ISO16750 (worldwide)
- ISO16505 (worldwide)
- UN-ECE R10 compliant (EU)
- FCC compliant (USA)
- TSCA compliant (USA)
- CP-65 (California Proposition) (USA)
Software Functionality
- Continuous self-diagnosis for maximum system reliability
- Precise distance values per sensor for maximum transparency and accuracy
- Zone-based evaluation per sensor for optimal adaptation to various application scenarios
- Standby function for the ECU or individual sensors for energy saving and flexible control
- Intelligent learning function for fixed objects such as trailer hitches
- Individually configurable measuring ranges and zones for each individual sensor
- Configurable CAN IDs and messages for seamless integration into the vehicle network
- Multiple ECUs can be combined on the same CAN bus for advanced system architectures
VDO Multimedia and CAN Radio

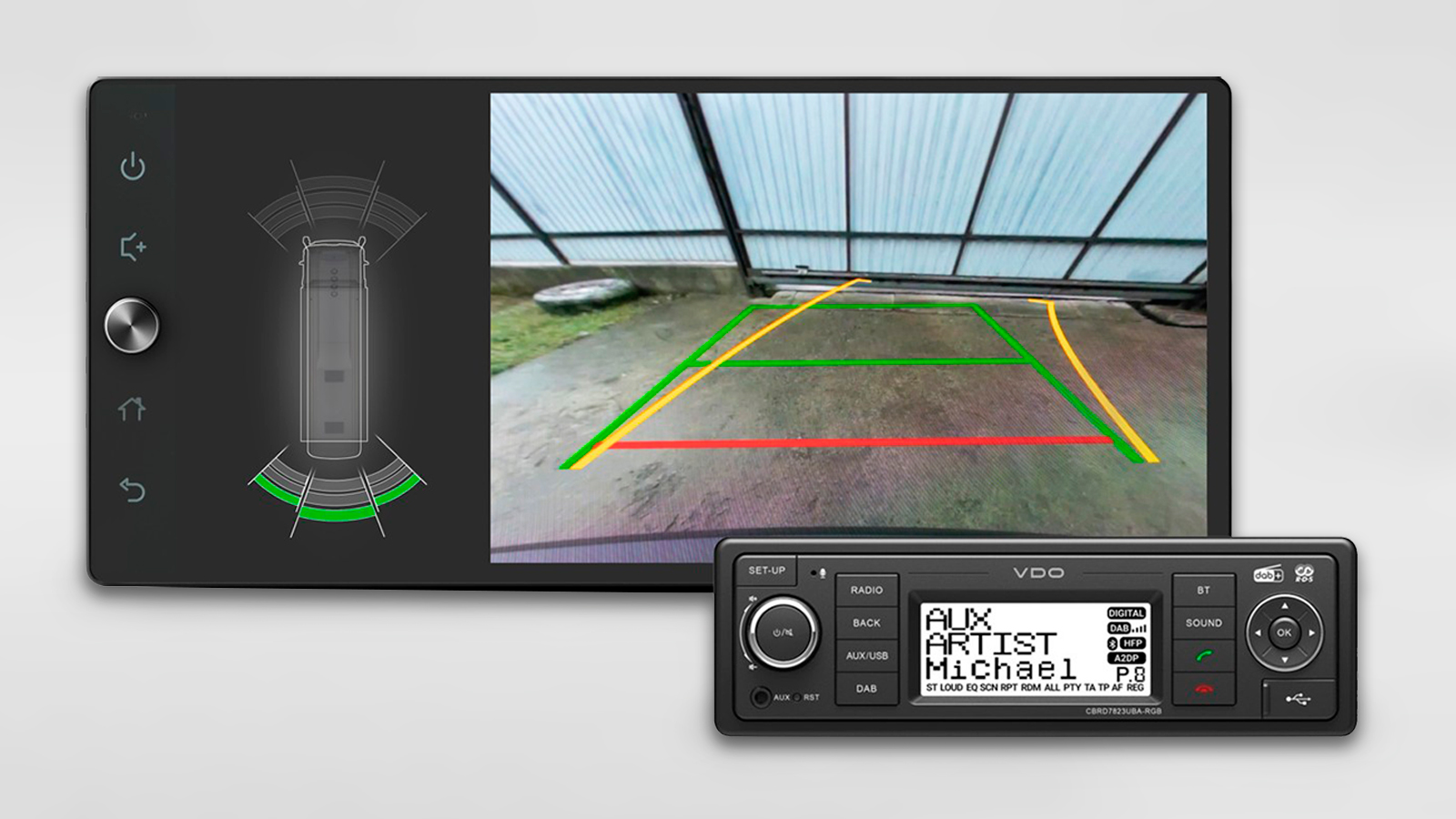

More and more of our radios are already fully compatible with the ultrasonic parking assistance system. Integration is particularly easy, as no additional speaker is required. This allows you to benefit from convenient installation, increased safety in daily operation, and significantly reduced repair costs for your entire fleet.
MultiViu® Series: MVP12 2nd Gen
The next generation of our MVP12 will support the ultrasonic system right out of the box, allowing for seamless integration without any additional effort. Thanks to the integrated warning speaker, the MVP12 provides clear audible feedback. Combined with rear-view cameras, this creates a particularly safe overall system that ensures maximum visibility and protection while maneuvering.
Our ProViu®360 system fully supports the new ultrasonic system. Furthermore, it enables seamless sensor fusion of camera and ultrasonic information in all views. Each sensor is precisely displayed via a dynamic overlay, ensuring the driver always maintains a clear overview. Objects within the detection range are color-coded according to their distance from the vehicle, enhancing safety and making maneuvering more intuitive.
Dynamic overlays precisely display each individual sensor on the vehicle, ensuring maximum transparency. Colored bars mark detected objects exactly at their position within the respective sensor range, showing the driver the relevant distance at a glance. Since the overlays are available in all views, the driver receives optimal support – even on narrow streets, in difficult lighting conditions, or in particularly distracting situations.
