Pressure Sensors
Pressure sensors are essential for monitoring engine and machinery conditions across a variety of applications. Our VDO portfolio includes electro-mechanical and electronic pressure sensors, as well as pressure switches, each designed for specific pressure ranges and connection requirements. These sensors ensure reliable detection and signaling to support safe and efficient operation.

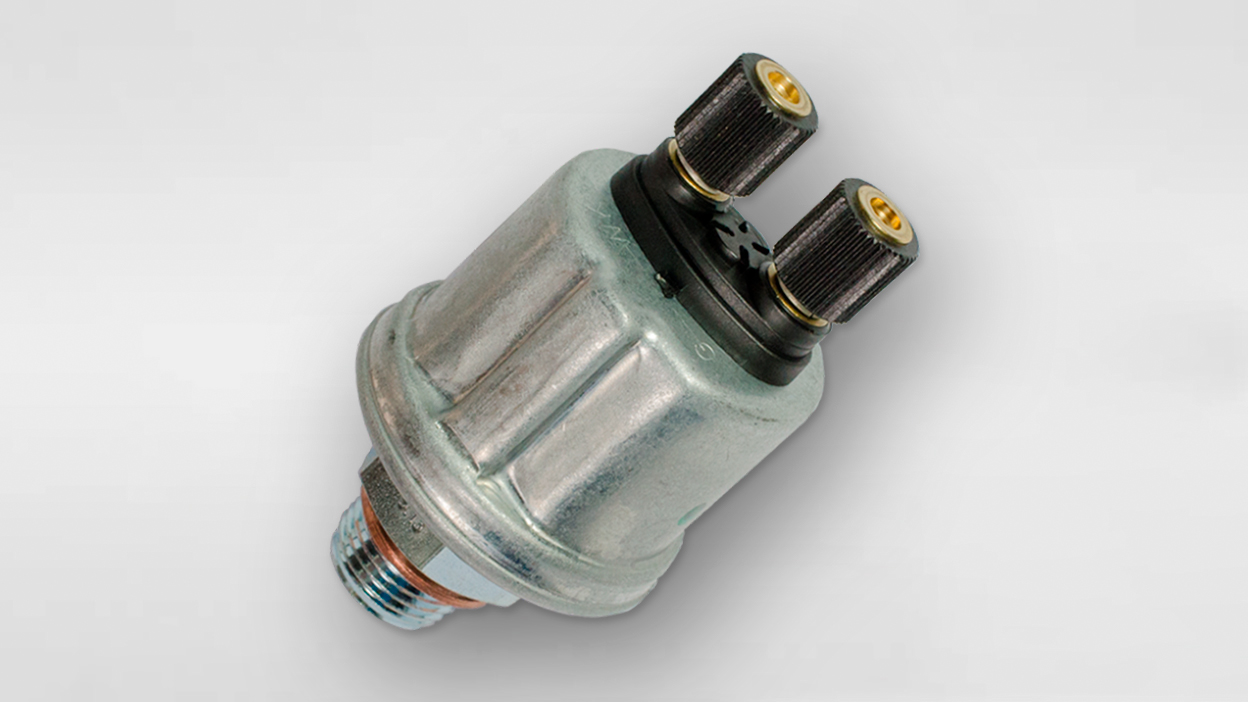

Electro Mechanical Pressure Sensor (EMPS)
Our engine oil pressure sensors (EMPS) have helped customers monitor pressure conditions in gaseous and liquid fluids across a variety of applications and locations. They are suitable for use in off-road and on-road vehicles, special-purpose vehicles, construction, agricultural and forestry equipment, stationary machinery, sports cars, and boats.
Key Features:
- Field tested millions of times over the past 50 years.
- Established, robust, efficient, and reliable.
- Fluids: Engine oil, transmission oil, air.
- Optional electrical switch (pressure warning).
- Various pressure ports and electrical connectors.

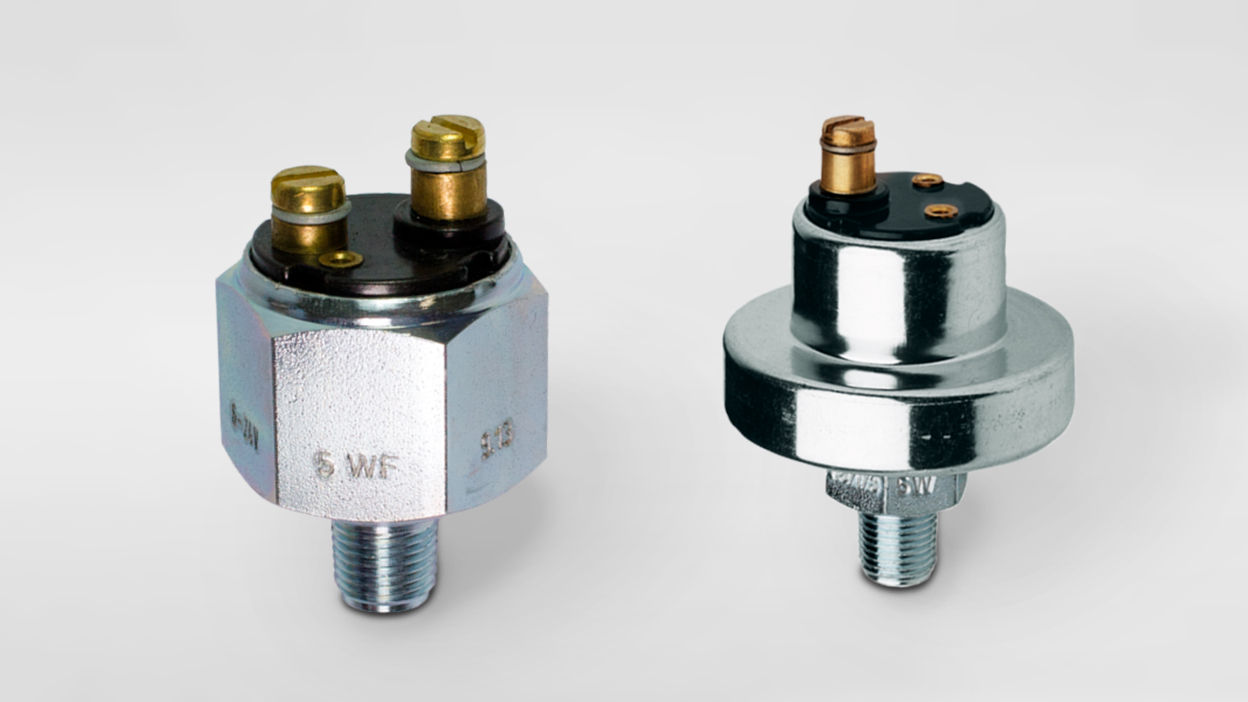

Pressure Switch
With decades of experience, we offer our passive pressure switches are a simple and cost-effective solution for controlling fans, warning lights, or other basic electrical actuators without the need for a control unit. They are robust, efficient, and reliable. Applications include engine manufacturers, off-road vehicles, specialty vehicles, construction equipment, agricultural and forestry machinery, stationary machinery, sports cars, and boats.
Technical Characteristics:
- Medium: Engine oil, air
- Operating Temperature: 120 °C
- Maximum switching current: 0,2 A
- Breaking capacity: 5 Watt
- Creeping contact: NO or NC

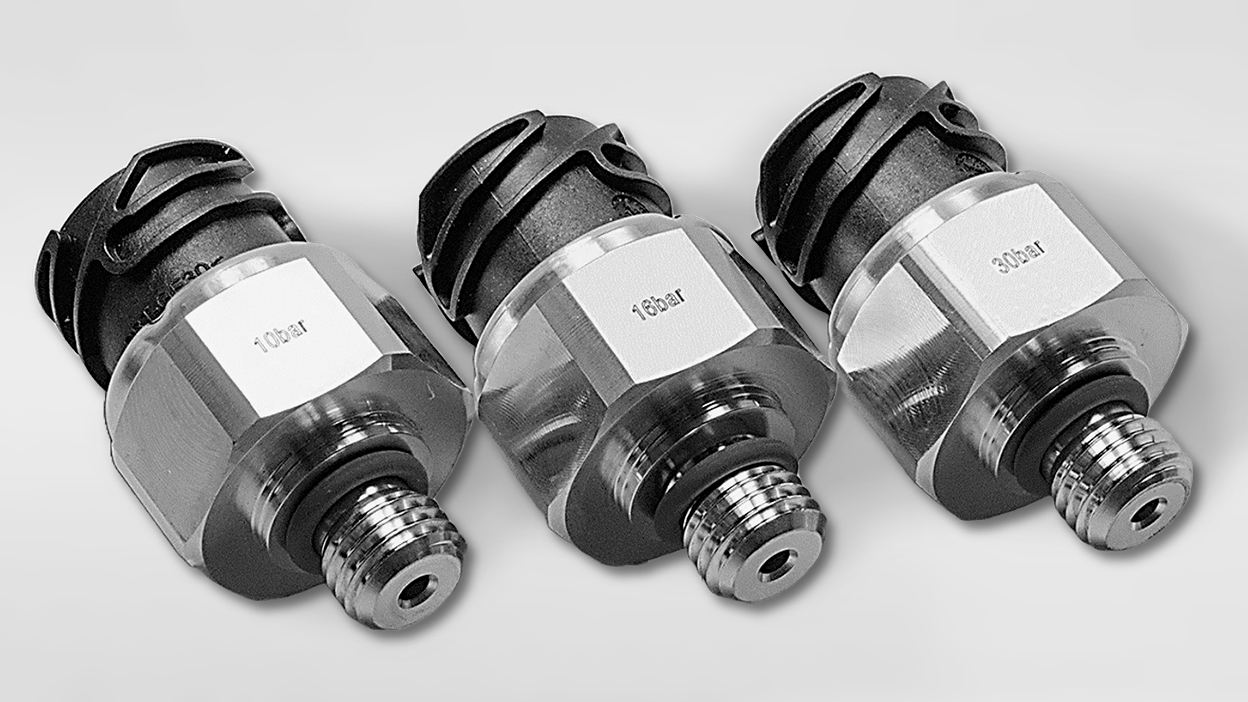

Electronic Pressure Sensor (EPS)
Our new generation of modular active pressure sensors is highly resistant to aggressive media - such as oil, brake fluid, diesel, gasoline, coolant, and more - depending on the application and the sealing material used. These sensors are suitable not only for automotive applications but also for other fields such as off-road and on-road vehicles, special vehicles, construction equipment, agricultural and forestry machinery, stationary machinery, sports cars, boats, and more. The pressure sensor unit is based on a stainless steel piezoresistive sensor element and converts pressure fluctuations of the measuring medium into a pressure-proportional electrical output signal (0.5 V – 4.5 V).
Electronic Pressure Sensor Gen2.1 (EPS)
Our second improved generation of modular active pressure sensors is highly resistant to aggressive media - such as oil, brake fluid, diesel, gasoline, coolant, and more - depending on the application and the sealing material used. These sensors are suitable not only for automotive applications, but also in other areas of use, such off-/on-road vehicles, special vehicles, machines used in construction, agriculture and forestry, stationary machines, sports cars, boats and more. The pressure sensor unit is based on a stainless steel piezoresistive sensor element and converts pressure fluctuations of the measured medium into a pressure-proportional electrical output signal (0.5 V – 4.5 V).
Key Features
- Second improved generation
- Direct pressure measurement
- Modular assembly
- Pressure port customization possible
- Pressure range customization possible
- Use in engine oil, gear oil, hydraulic oil, air (brake) - customization possible
Sensors
VDO temperature and pressure sensors enable precise monitoring of oil, water, air, and system pressures in vehicles and machinery. With their robust design, various form factors, and connection options, they are designed for demanding operating conditions and support the safe and efficient operation of technical systems.
Control Sensor
These sensors ensure reliable detection and signaling to support safe and efficient operation.
Robust design
Our experts designed sensors using advanced calibration and control techniques.
Resistant
To aggressive fluids - such as oil, brake fluid, diesel, gasoline, coolant, and more...
Experience
With decades of experience, we offer our outstanding and cost-effective sensors solution
Temperature Sensors
Our VDO temperature sensors for oil, water, and air are available applications, featuring NTC characteristics, various thread sizes, electrical connectors, and housings made of metal or plastic. New variants meet automotive standards and offer enhanced IP protection. Additionally, temperature switches provide reliable monitoring of maximum coolant or engine oil temperatures with different warning contacts and thread sizes.

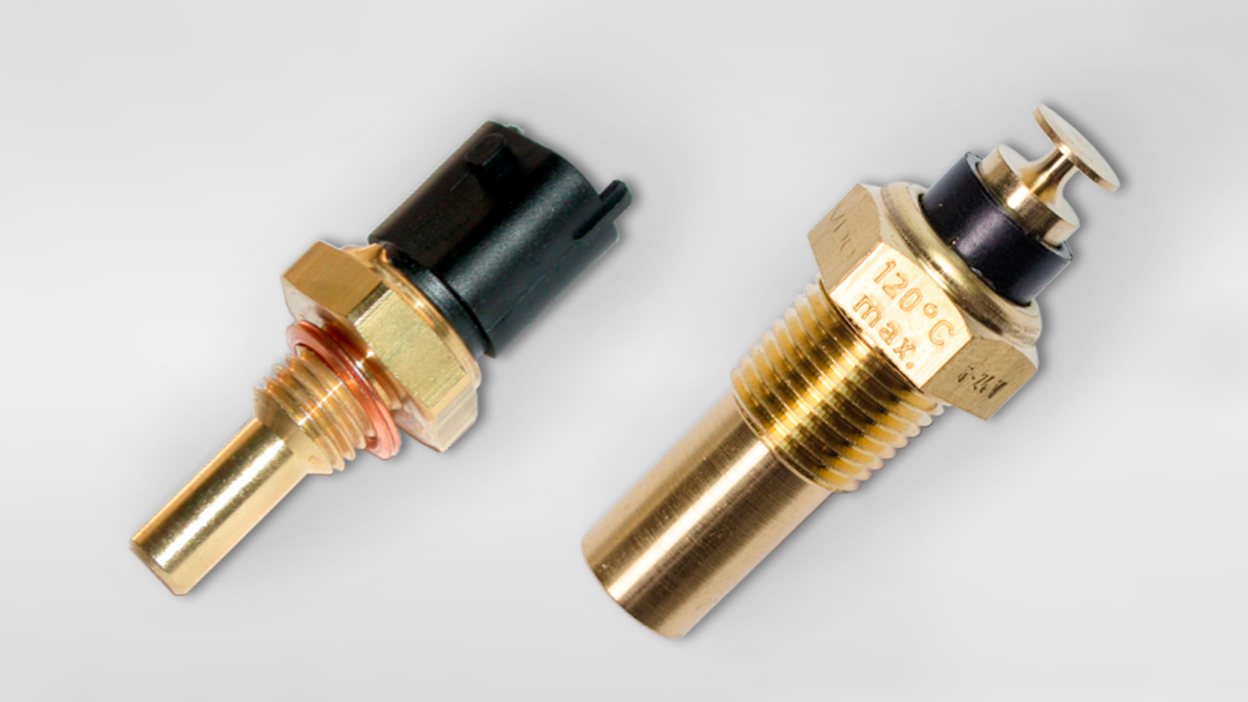

Coolant & Oil Temperature Sensors
Our temperature sensors are used in vehicles to measure and monitor the temperature of oil, water, or fuel. The measured values are transmitted to the vehicle's engine control unit (ECU). The engine management system uses various temperature signals to improve engine performance, control emissions and fuel consumption, and optimize efficiency.
Our application range includes engine manufacturers, off-road vehicles, special-purpose vehicles, construction equipment, agricultural and forestry machinery, stationary machinery, sports cars, boats, and much more.
Key Features
- Wide range of applications
- High accuracy
- Long-term stability
- Certified quality
- High worldwide volume production
- The operating principle is based on NTC technology
Product Benefits
- Best economical solution for continuous measurement
- Robust design, Passive sensor
- Wear resisting
- Various designs & connector types for various installation options

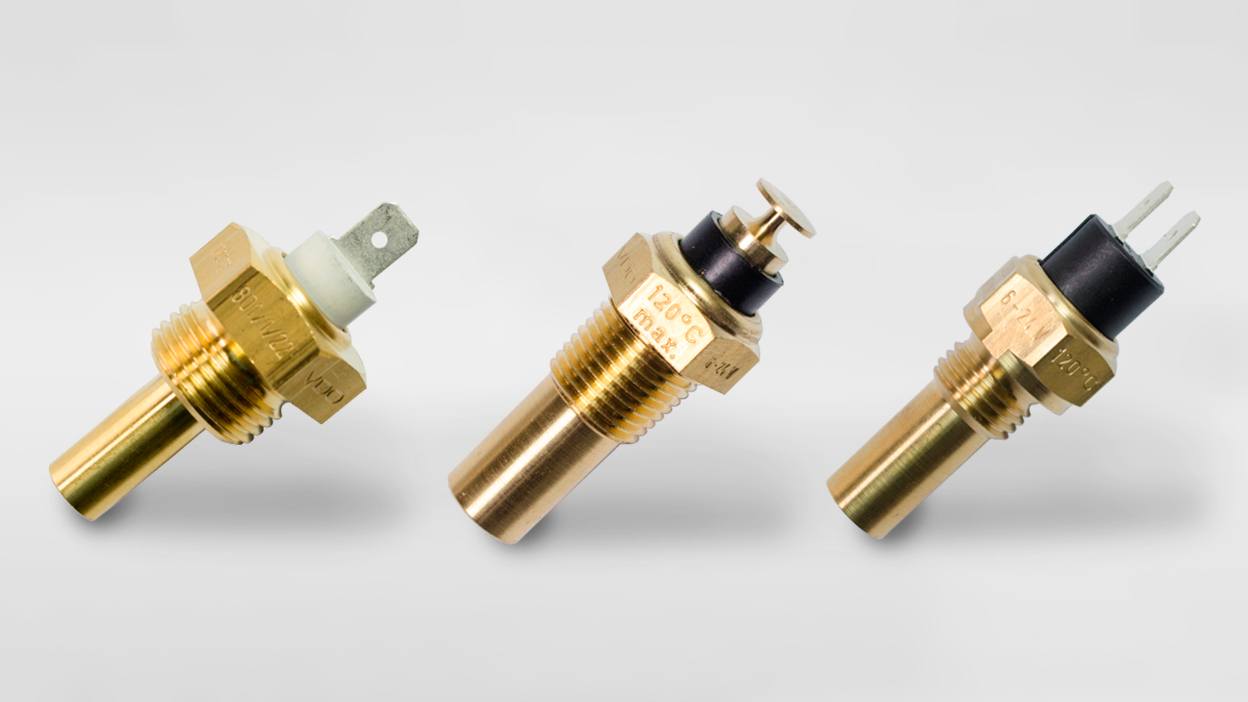

Temperature Switch
Temperature switches are used in vehicles to monitor the temperature of oil, water, or fuel and transmit the measurement to the control unit or other instruments. The operating principle of temperature switches is based on bimetallic Technology; that is, two different metals with different coefficients of thermal expansion are joined together to generate temperature-dependent mechanical movements or switching operations.
These temperature switches are used by engine manufacturers, off-road vehicles, special-purpose vehicles, construction equipment, agricultural and forestry machinery, stationary machinery, sports cars, and boats.
Key Features
- Simple solution for high-low temperature monitoring
- Robust design, Various installation options, Different connector types
- Various designs:
Breaking capacity 1.2 W up to 3 W, single-pole via ground, creaping contact
Breaking capacity 100 W, floating ground, jumping contact

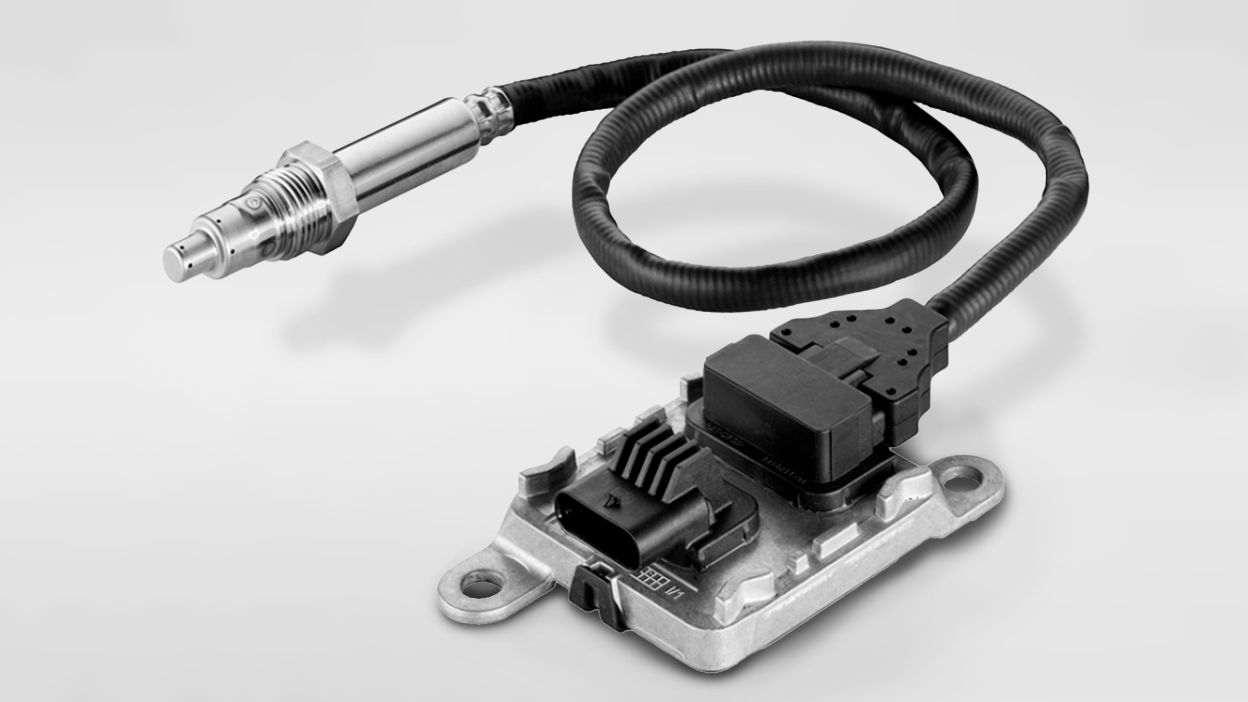

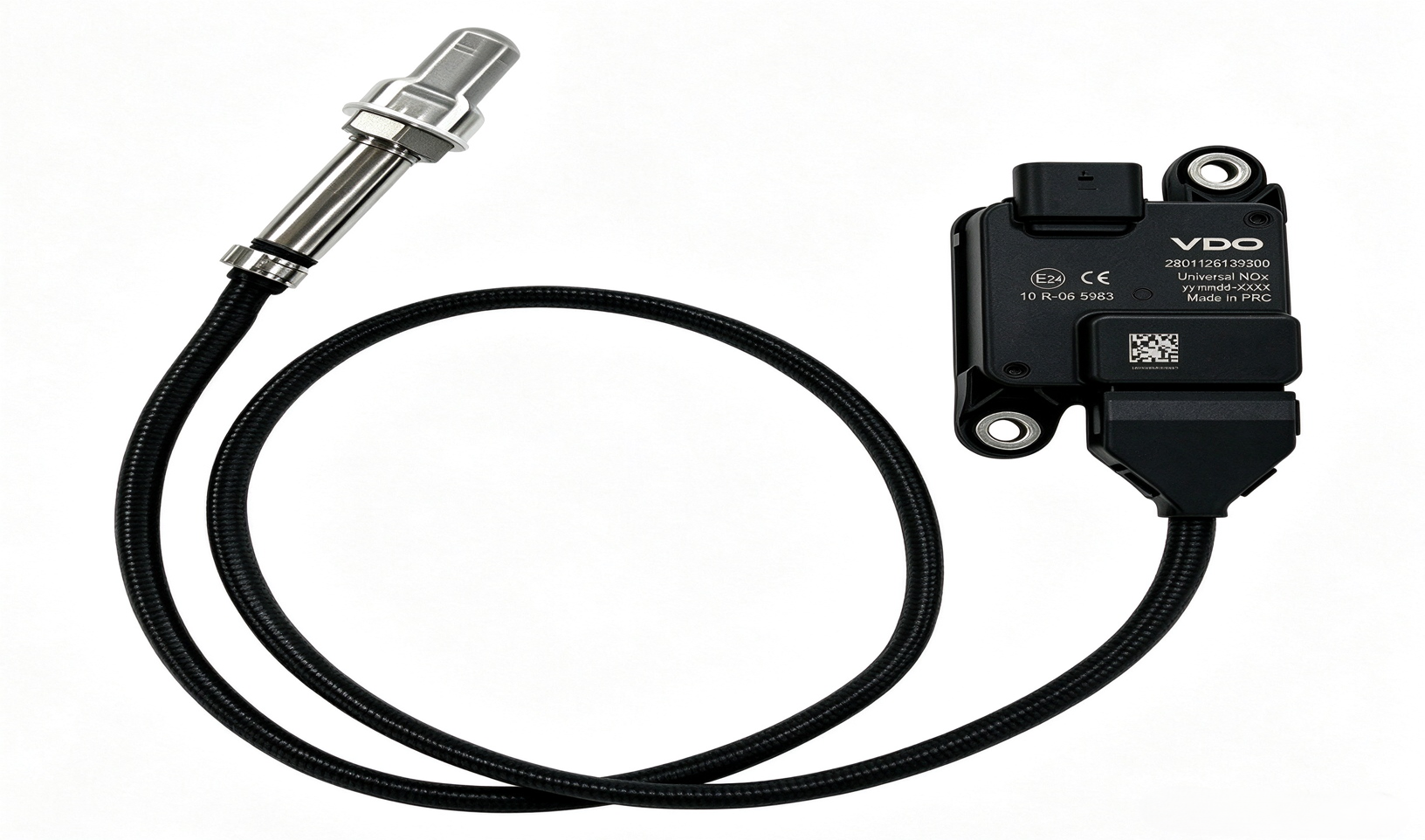

Universal NOx-Sensor (UniNOx)
The UniNox sensor is a stand alone, multifunctional sensor, that measures NOx concentration and air/fuel-ratio in the exhaust gases.It comprises a zirconia multi-layer ceramic sensing element in a metal housing, connected to the ECU via cable. Like in a linear wide band lambda sensor, electrochemical pumps are used to determine the oxygen concentration in the sensing element, and the NOx concentration in the exhaust gas is proportional to the pump current in the sensor element. Based on the measured physical values, the ECU calculates three output signals (NOx, binary lambda, linear lambda). These signals are then transmitted to the engine ECU over the CAN bus.
Key Features
- Necessary for manufacturers seeking to comply with existing / forthcoming emissions standards and the associated legislation, e.g. as Euro 4, 5, 6, US07 and US10
- Highly effective exhaust treatment (emissions reduction)
- For both gasoline and diesel engines
- Applicable for all Engine/Special vehicle producers
- Over 20 years of experience in sensor technology used in gasoline engines since 2001 and diesel engines since 2005
- NGK Insulators and Continental, bringing together their expertise in ceramics and electronics
- Designed by experts in sensor calibration and control techniques
- Experienced in series production
- Independent of catalyst supplier, ECU supplier and engine management system
- OBD compliant
- Self-diagnostics for short circuit and cable break
- High-precision, calibrated sensor
